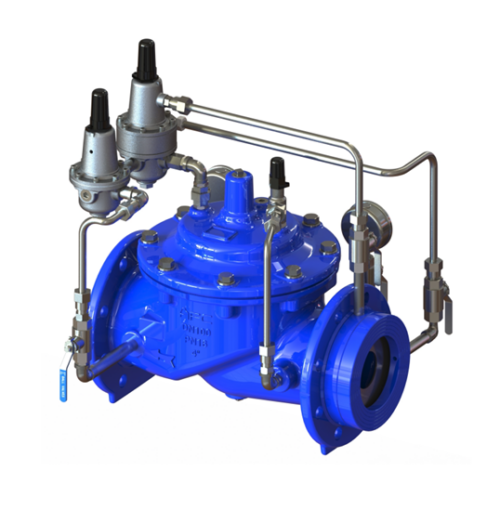

A204 Pressure Reducing with Flow Control Valve
A204 Pressure Reducing with Flow Control Valve
Spec Sheet: DNS-A204 Pressure Reducing + Flow Control Valve
Other: PRV + Rate of Flow drawing A204-SE-AFC-BS-ASS-A204-50-600-V1
Certification: WRAS
The A204 is a pressure-reducing and Flow Control valve that limits the outlet pressure and max flow.
Description
A204 Pressure Reducing with Flow Control Valve
Features:
·Top and seat ring guided stem and diaphragm assembly for long life and reliability.
• All iron components are fusion epoxy bonded for corrosion resistance.
• Easy maintenance without removal from the main line.
• Nylon-reinforced diaphragm for long-term service.
• Drip tight shut off.
• Globe design for superior control characteristics.
• Ductile iron bodies for higher strength and durability.
• Corrosion-resistant stainless steel seat and disc retainer ring.
• Various pilots and accessories are available for configuration into many different applications.
• Special V-Port and double chamber are options, please consult the factory.
• Meet standards BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1,
General Application:
For pressure and flow control in water applications.
Specifications
| Size Range | DN50~DN800mm |
|---|---|
| Pressure Ratings | 10 Bar; 16 Bar; 25 Bar |
| Working Temperature | -10°C to 80°C |
| Suitable Media | Water |
| End connection | PN 10 / PN 16 / PN 25 |
