A205 Pressure Sustaining/Reducing Valve
A205 Pressure Sustaining/Reducing Valve
Spec Sheet: DNS-A205 Pressure Sustaining_Pressure Reducing Valve-v1
Installation, Operating, and Maintenance Manual: Available on request.
Certification: WRAS

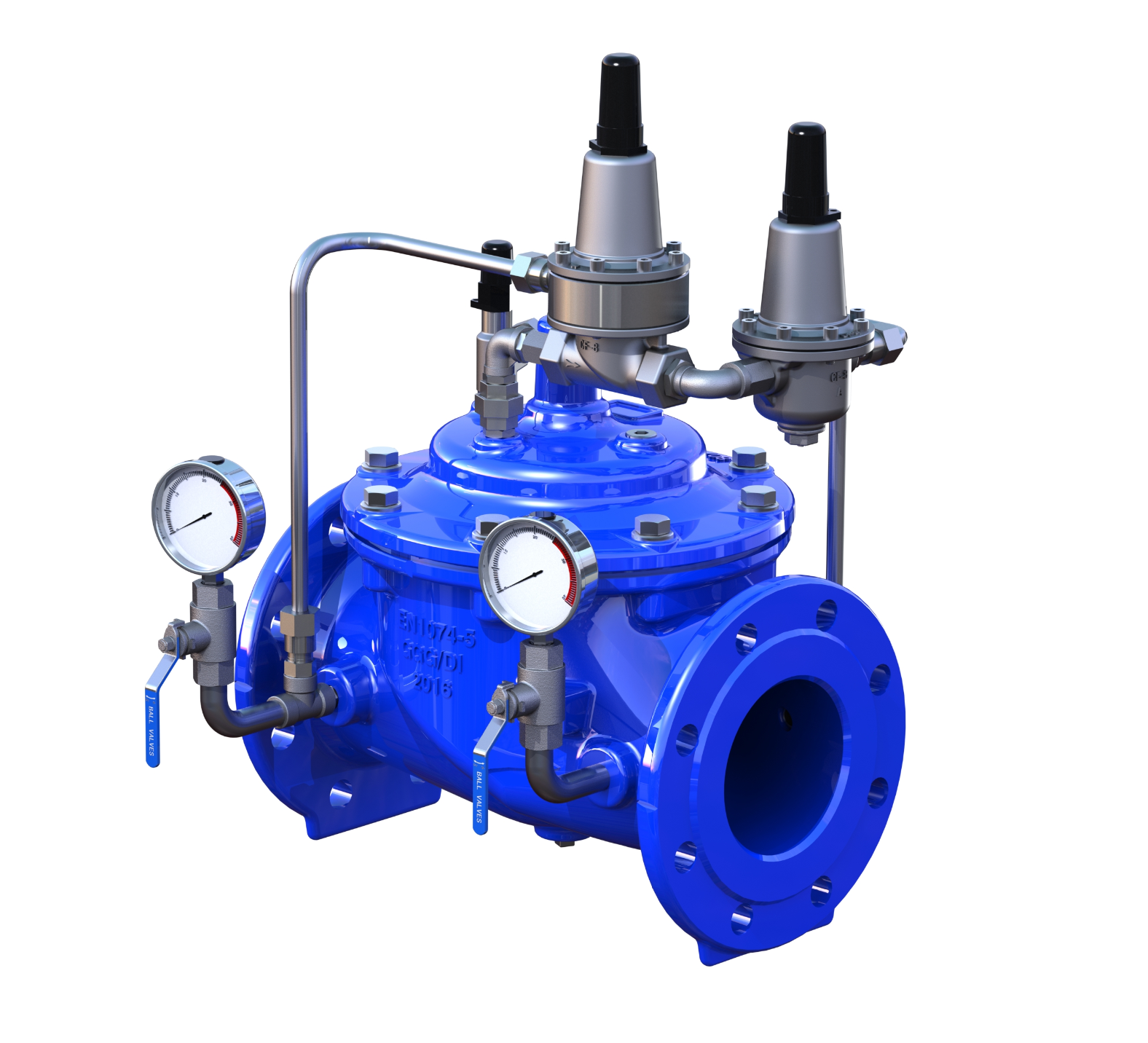

The A205 is a pressure Sustaining / Reducing valve. It will sustain the inlet pressure equal/greater than the setting and reduce the outlet pressure equal/lower than the setting.
There are two pilots. One is for inlet pressure sustaining and the other one is for outlet pressure reduction.
Description
A205 Pressure Sustaining/Reducing Valve
Features:
• Top and seat ring guided stem and diaphragm assembly for long life and reliability.
• All iron components are fusion epoxy bonded for corrosion resistance.
• Easy maintenance without removal from the mainline.
• Nylon reinforced diaphragm for long-term service.
• Drip tight shut off.
• Globe design for superior control characteristics.
• Ductile iron bodies for higher strength and durability.
• Corrosion-resistant stainless steel seat and disc retainer ring.
• Various pilots and accessories are available for configuration into many different applications.
• Special V-Port and double chamber are options, please consult the factory.
• Meet standards BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1,
General Application:
For flow control in water applications.
Specifications
| Size Range | DN50~DN800mm |
|---|---|
| Pressure Ratings | 10 Bar; 16 Bar; 25 Bar |
| Working Temperature | -10°C to 80°C |
| Suitable Media | Water |
| End connection | PN 10 / PN 16 / PN 25 |
