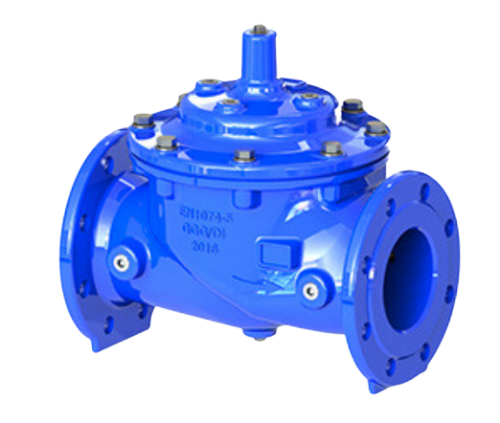

A900 Automatic Control Valve (Main Valve)
A900 Automatic Control Valve
Spec Sheet: A900 Automatic Control Valve (Main Valve)
Certification: WRAS
The A900 series of automatic control valves are Basic Valves to provide hydraulically driven solutions to pressure, flow, and level control applications.
Product Info
Model : A900
Size Range: DN50-700MM
Ratings: PN10, PN16, PN 25
Body: Ductile Iron, GJS 500-7
Coating: Powder epoxy coating
End Connection : PN10 / PN16 / PN25
Description
A900 Automatic Control Valve
Features:
• Top and seat ring guided stem and diaphragm assembly for long life and reliability.
• All iron components are fusion epoxy bonded for corrosion resistance.
• Easy maintenance without removal from the mainline.
• Nylon reinforced diaphragm for long-term service.
• Drip tight shut off.
• Globe design for superior control characteristics.
• Ductile iron bodies for higher strength and durability.
• Corrosion-resistant stainless steel seat and disc retainer ring.
• Various pilots and accessories are available for configuration into many different applications.
• Special V-Port and double chamber are options, please consult the factory.
• Meet standards BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1,
General Application:
For pressure, flow, and level control in water applications.
Specifications
| Size Range | DN50~DN900mm |
|---|---|
| Pressure Ratings | 10 Bar; 16 Bar; 25 Bar |
| Working Temperature | -10°C to 80°C |
| Media | Water |
| End connection | PN 10 / PN 16 / PN 25 |
