P24C Pressure Reducing and Flow Compensator
P24C Pressure Reducing and Flow Compensator
Spec Sheet: DNS P24C-PN-V1-Prvflow-Compensator Data Sheet
Other: SE-AFC-BS-ASS-P26C-50-600-V1
Certification: WRAS

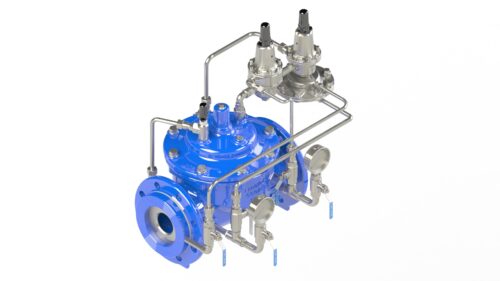

The P24C is a pressure-reducing valve with Flow Compensator which
allows the outlet pressure to vary based on the flow rate. The max and min outlet pressure can be preset. The outlet pressure will change in this range based on the flow rate.
Description
P24C Pressure Reducing and Flow Compensator
Features:
·Top and seat ring guided stem and diaphragm assembly for long life and reliability.
• All iron components are fusion epoxy bonded for corrosion resistance.
• Easy maintenance without removal from the main line.
• Nylon-reinforced diaphragm for long-term service.
• Drip tight shut off.
• Globe design for superior control characteristics.
• Ductile iron bodies for higher strength and durability.
• Corrosion-resistant stainless steel seat and disc retainer ring.
• Various pilots and accessories are available for configuration into many different applications.
• Special V-Port and double chamber are options, please consult the factory.
• Meet standards BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1,
General Application:
For pressure, and flow control in water applications.
Specifications
| Size Range | DN50~DN800mm |
|---|---|
| Pressure Ratings | 10 Bar; 16 Bar; 25 Bar |
| Working Temperature | -10°C to 80°C |
| Suitable Media | Water |
| End connection | PN 10 / PN 16 / PN 25 |
