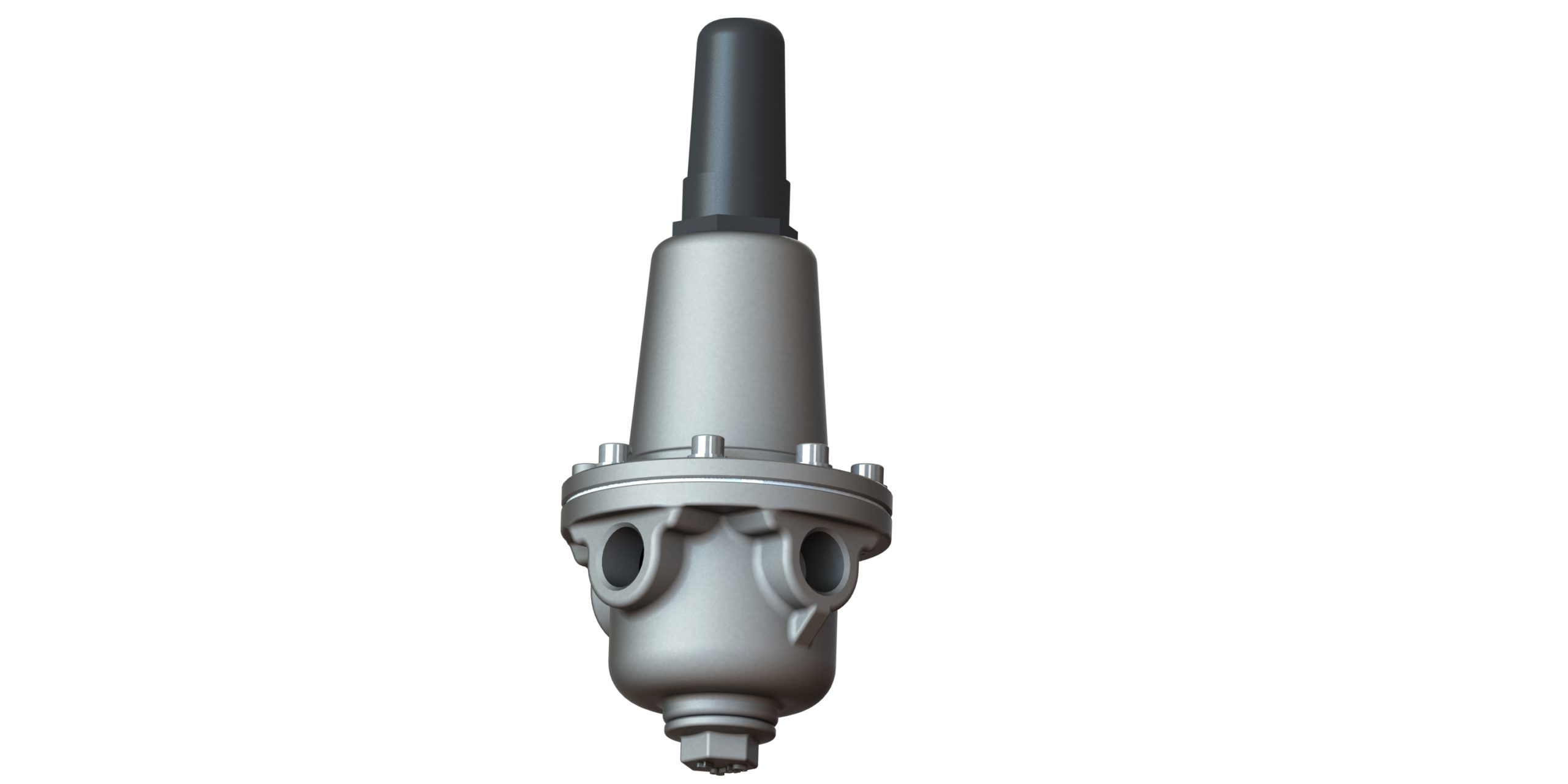

A20B Pressure Reducing Valve & Low Flow Rate Bypass
A20B Pressure Reducing Valve & Low Flow Rate Bypass
Spec Sheet: DNS-A20B Pressure Reducing Valve + Low Flow Rate Bypass-V1
Installation, Operating, and Maintenance Manual: Available on request.
Certification: WRAS
The A20B is a pressure-reducing valve with a low flow rate bypass pilot. It gives a stable fixed outlet pressure
during a normal flow rate. When the flow rate is very small, the main valve will close and water will flow through the bypass pilot to avoid valve vibration.
Description
A20B Pressure Reducing Valve & Low Flow Rate Bypass
Features:
• Top and seat ring guided stem and diaphragm assembly for long life and reliability.
• All iron components are fusion epoxy bonded for corrosion resistance.
• Easy maintenance without removal from the mainline.
• Nylon reinforced diaphragm for long-term service.
• Drip tight shut off.
• Globe design for superior control characteristics.
• Ductile iron bodies for higher strength and durability.
• Corrosion-resistant stainless steel seat and disc retainer ring.
• Various pilots and accessories are available for configuration into man different applications.
• Special V-Port and double chamber are options, please consult the factory.
• Meet standards BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1,
General Application:
For pressure, flow, and level control in water applications.
Specifications
| Size Range | DN50~DN200mm |
|---|---|
| Pressure Ratings | 10 Bar; 16 Bar; 25 Bar |
| Working Temperature | -10°C to 80°C |
| Media | Water |
| End connection | PN 10 / PN 16 / PN 25 |
