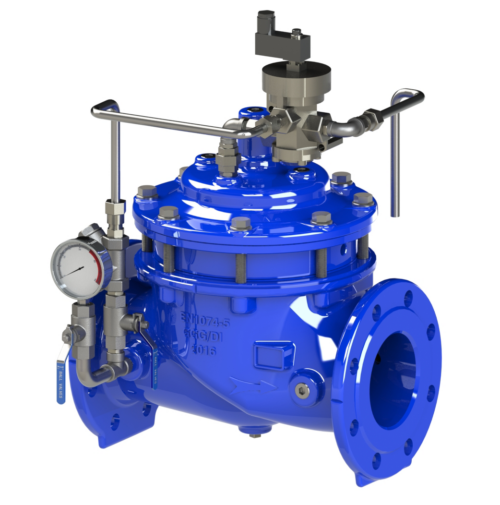

A6DV Double Chamber Solenoid Control Valve with Vport
A6DV Double Chamber Solenoid Control Valve with Vport
Spec Sheet: DNS A6DV Double Chamber Solenoid CV V Port Data Sheet
Certification: WRAS
The A6DV is a double-chamber solenoid control valve. It will fully open by releasing all water in the upper chamber to give a better head loss.
Description
A6DV Double Chamber Solenoid Control Valve with Vport
Features:
• Top and seat ring guided stem and diaphragm assembly for long life and reliability.
• All iron components are fusion epoxy bonded for corrosion resistance.
• Easy maintenance without removal from the mainline.
• Nylon reinforced diaphragm for long-term service.
• Drip tight shut off.
• Globe design for superior control characteristics.
• Ductile iron bodies for higher strength and durability.
• Corrosion-resistant stainless steel seat and disc retainer ring.
• Various pilots and accessories are available for configuration into man different applications.
• Special V-Port and double chamber are options, please consult the factory.
• Meet standards BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1,
General Application:
For on/off control in water applications.
Specifications
| Size Range | DN50~DN600mm |
|---|---|
| Pressure Ratings | 10 Bar; 16 Bar; 25 Bar |
| Working Temperature | -10°C to 80°C |
| Suitable Media | Water |
| End connection | PN 10 / PN 16 / PN 25 / Table E. |
